Language / Язык: English | Русский

Web UI

Open http://localhost:8006/ after make up.

The UI is a laboratory console for the simulator — not a full Proxmox VE management interface. It supports light and dark themes, PVE majors 6–9, request/response editing, history, and runtime contract apply.

Screenshots

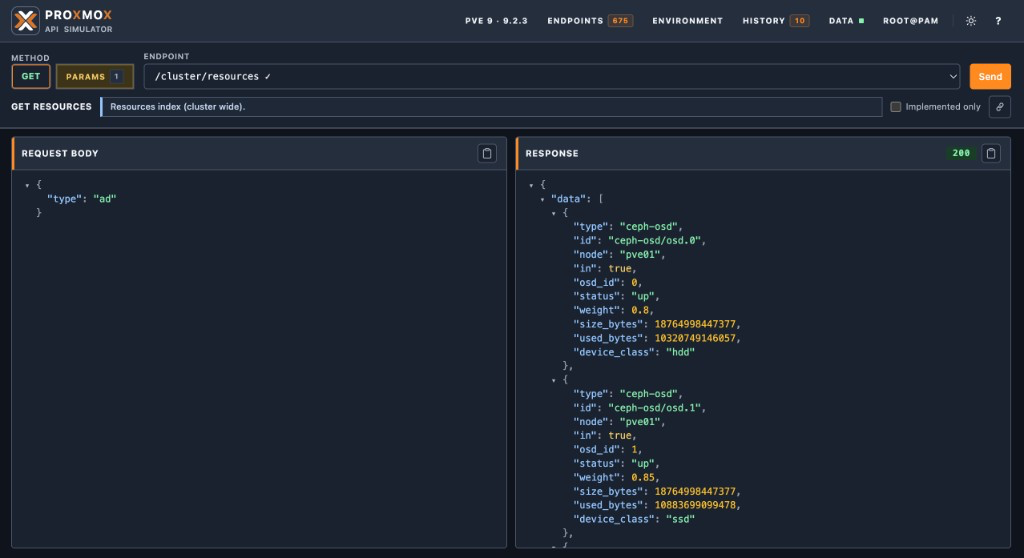

Console home (dark theme, PVE 8.4.5):

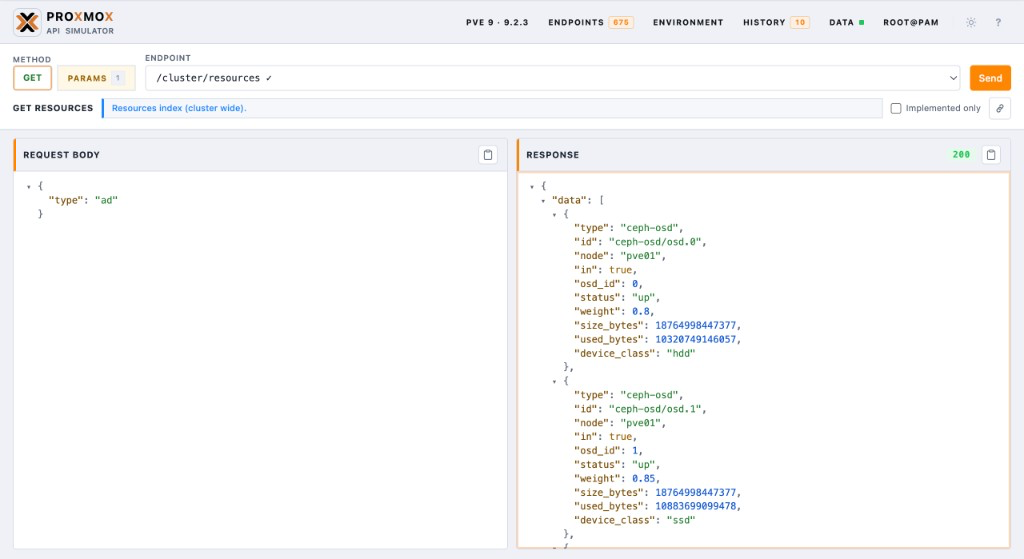

Light / dark themes:

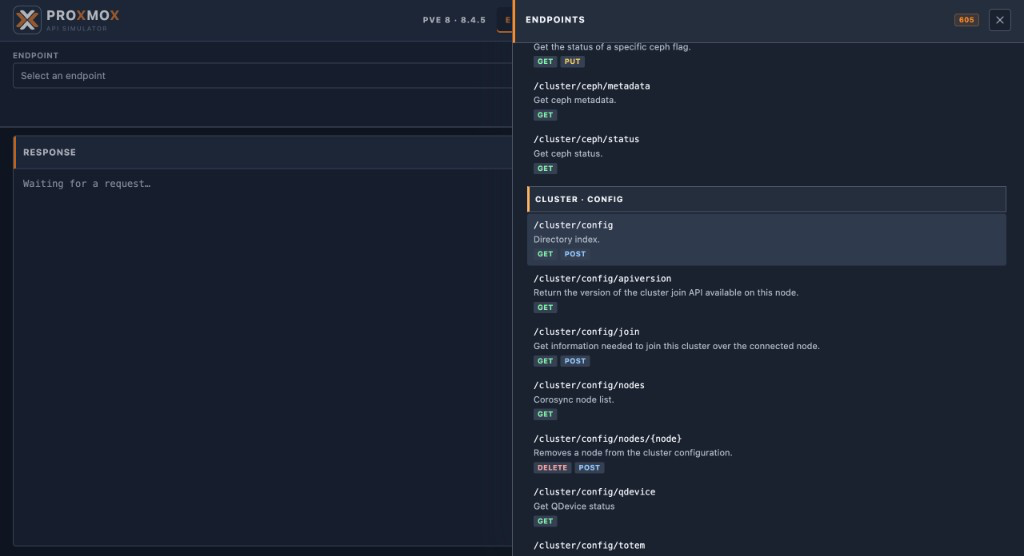

Endpoints drawer (catalog methods for the selected major):

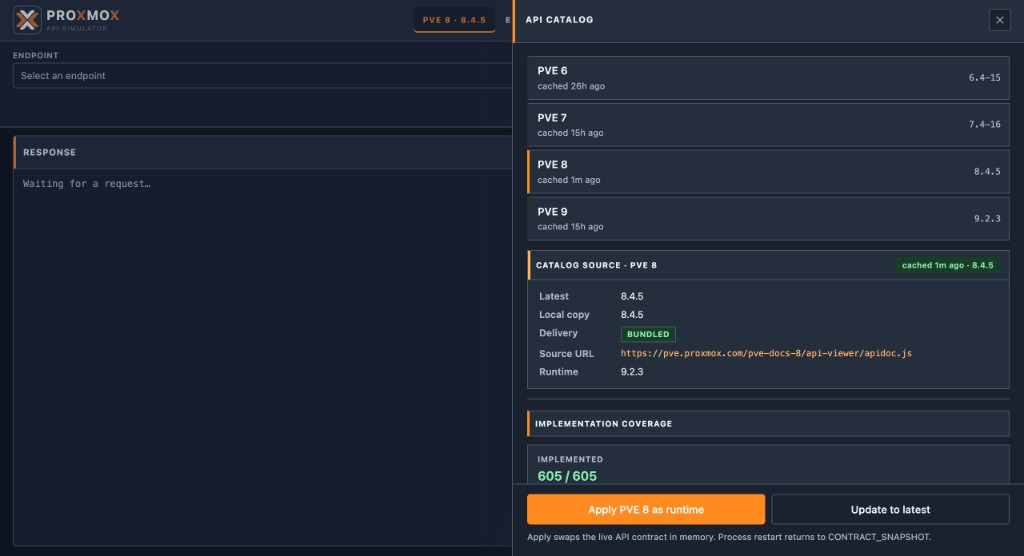

API catalog — majors 6–9, coverage, and Apply as runtime:

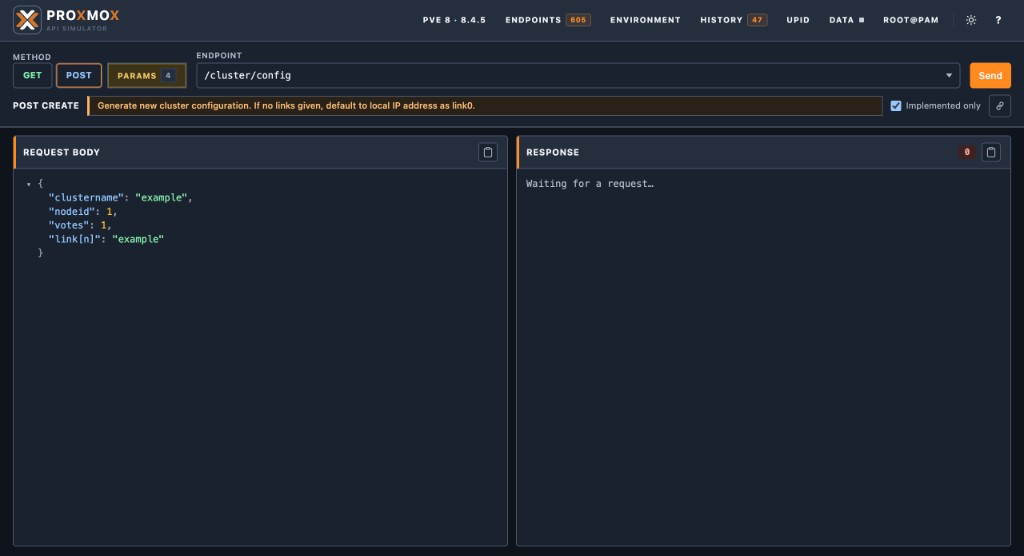

Request editor (POST /cluster/config):

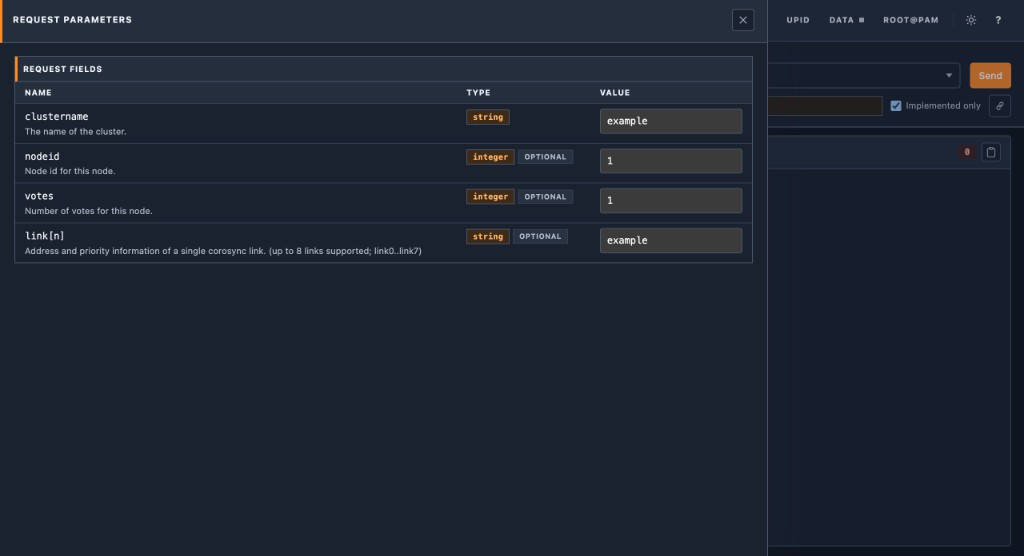

Contract-derived request parameters:

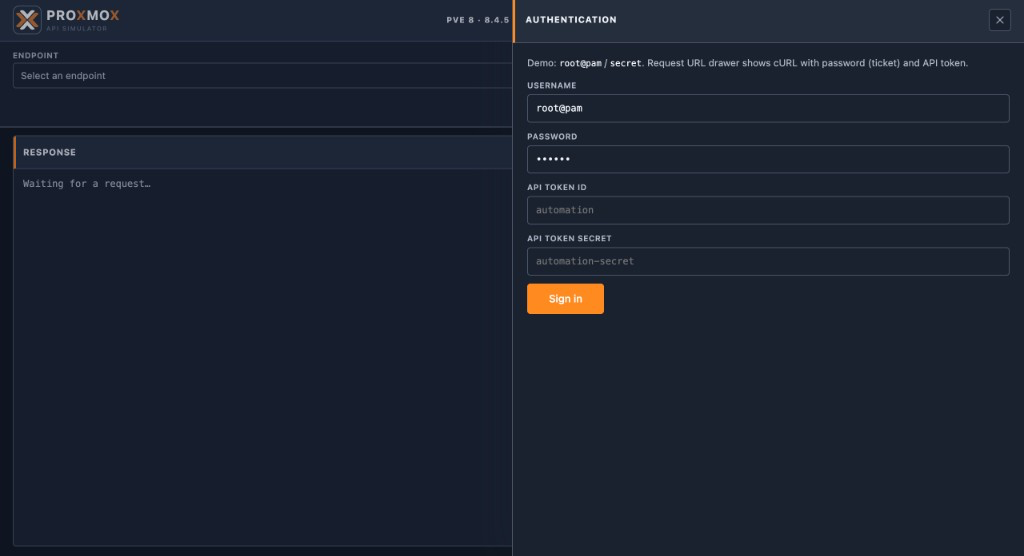

Authentication (root@pam / API token):

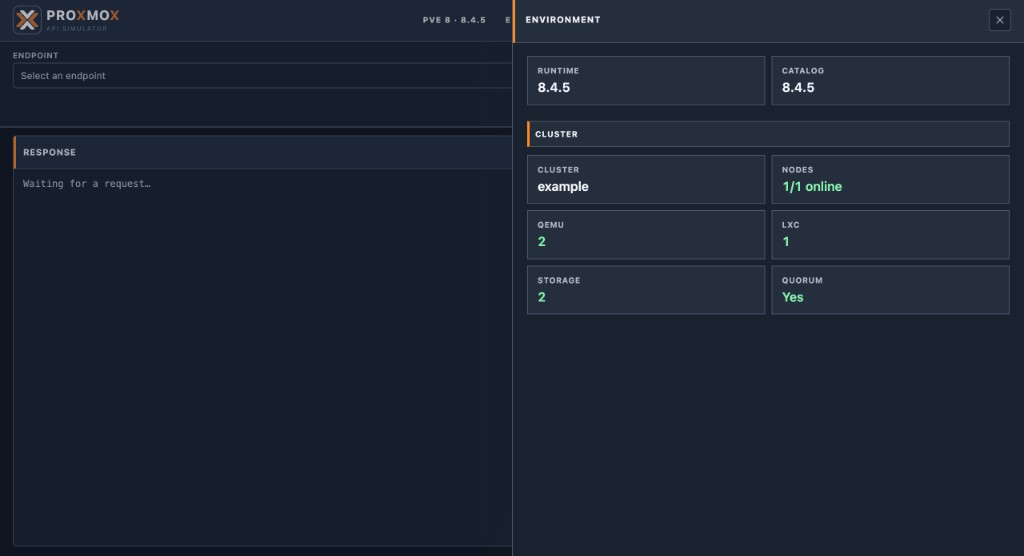

Environment summary (runtime, cluster, guests):

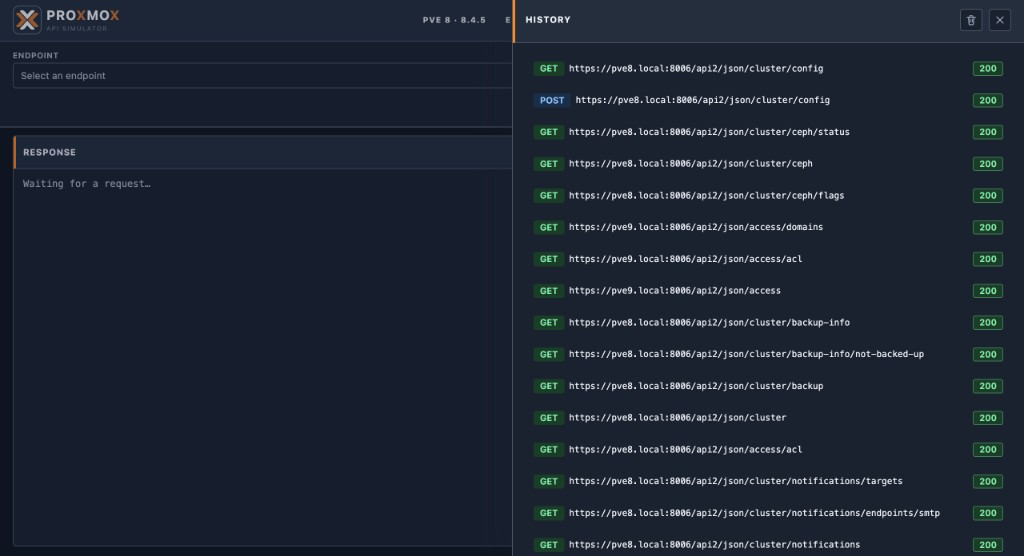

Request history:

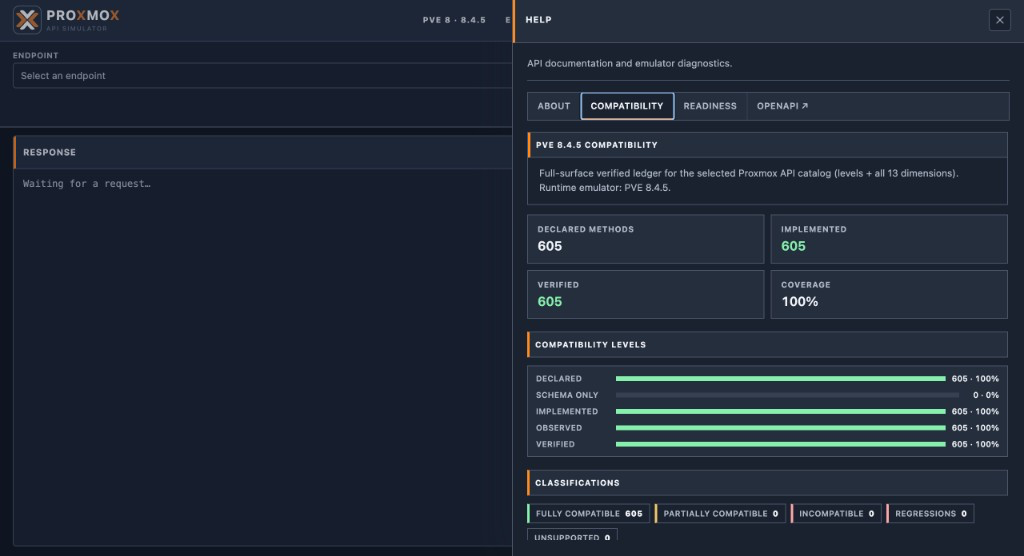

Help / compatibility ledger:

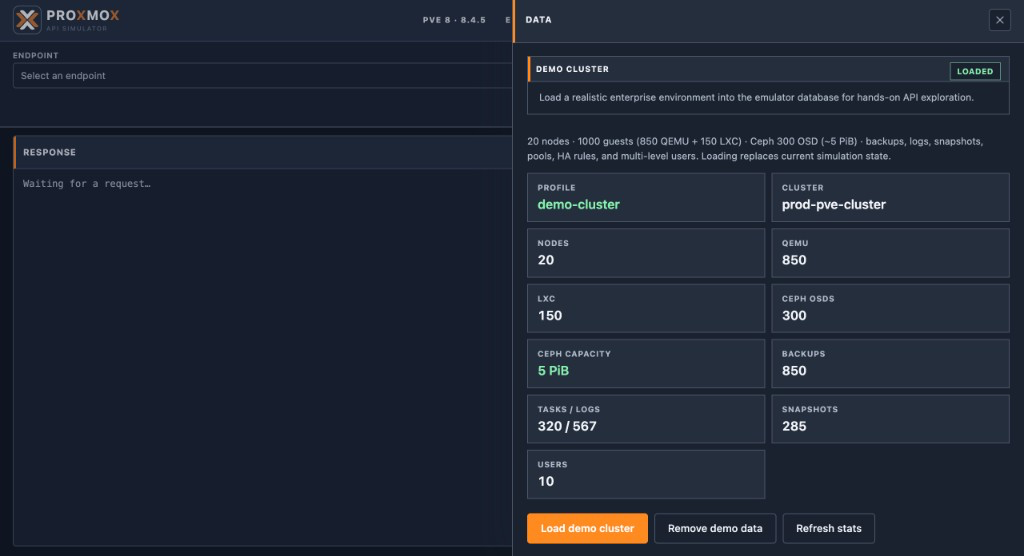

Demo-cluster load controls:

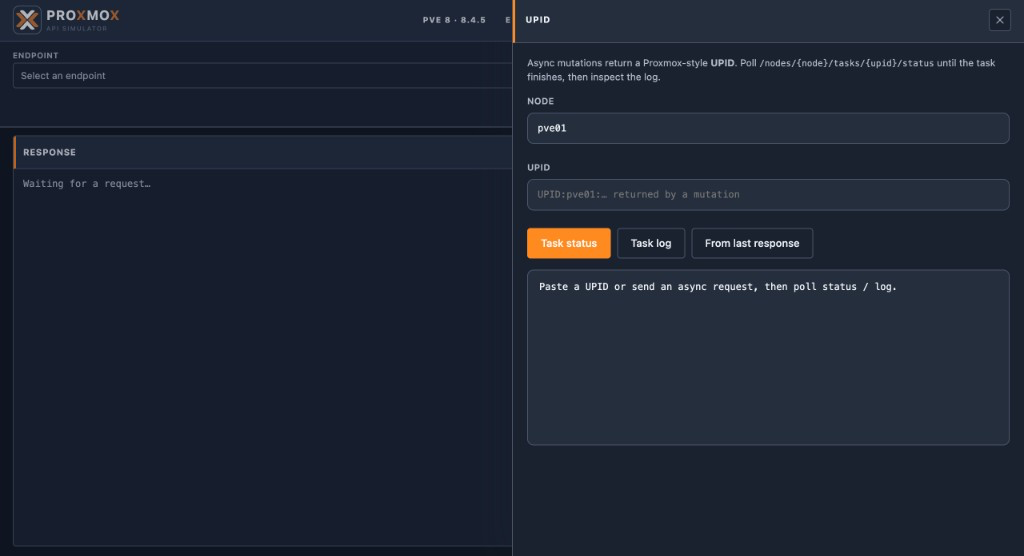

UPID task monitor:

Features

Endpoint tree and method selector driven by the selected catalog major
Contract-derived parameters and example payloads
Request editor, response viewer, and history
Password login with cookie + CSRF handling
Environment summary (runtime version, nodes, guests, storage)
Curl / request previews
PVE 6–9 API catalog with implementation coverage
Apply as runtime hot-swap for the active contract
Compatibility and readiness views
Demo-cluster load / unload / refresh
UPID task monitor (header control → status / log / “From last response”; requires login for authenticated task polls)
Link to OpenAPI at /docs

Backend helpers

Method	Path	Purpose
GET	`/ui/api/versions`	Catalog majors vs runtime
GET	`/ui/api/catalog?major=N`	Catalog for major 6–9
GET	`/ui/api/method?...`	Single method metadata
GET	`/ui/api/compatibility?major=N`	Coverage payload
POST	`/ui/api/contract/apply?major=N`	Hot-swap runtime contract
GET	`/ui/api/demo/state`	Demo dataset state
POST	`/ui/api/demo/load`	Load `demo-cluster`
POST	`/ui/api/demo/unload`	Unload → `minimal`

Version workflow

Pick major 6 / 7 / 8 / 9 in the catalog.
Inspect methods and coverage.
Apply as runtime when you want live /api2/* routes to match that major.
Confirm with /api2/json/version and /admin/compatibility.

Hot-swap is memory-only; restart restores CONTRACT_SNAPSHOT. Details: API versions.

Security note

UI and demo endpoints are intended for local development. They are not gated by a separate admin token in the current build. Do not expose the simulator port to untrusted networks.
