Web UI

Interactive console for browsing Engine contract operations, issuing lab tokens, sending Try-it requests, and managing seed data.

Compose default URL: http://127.0.0.1:5000/
(With make up-local, use the local UI port from your .env, e.g. 6080 / 7080.)

Workspace

Area	Purpose

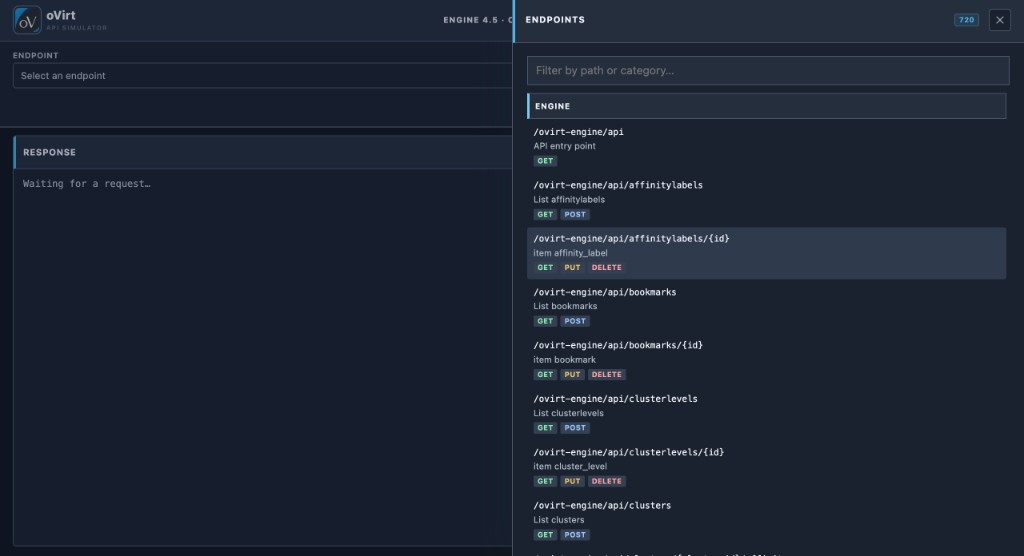

Endpoint picker	Searchable catalog of contract paths (Engine series pack)
Method tabs	GET / POST / PUT / DELETE for the selected path
Request body	Engine-shaped JSON sample for create/update/action

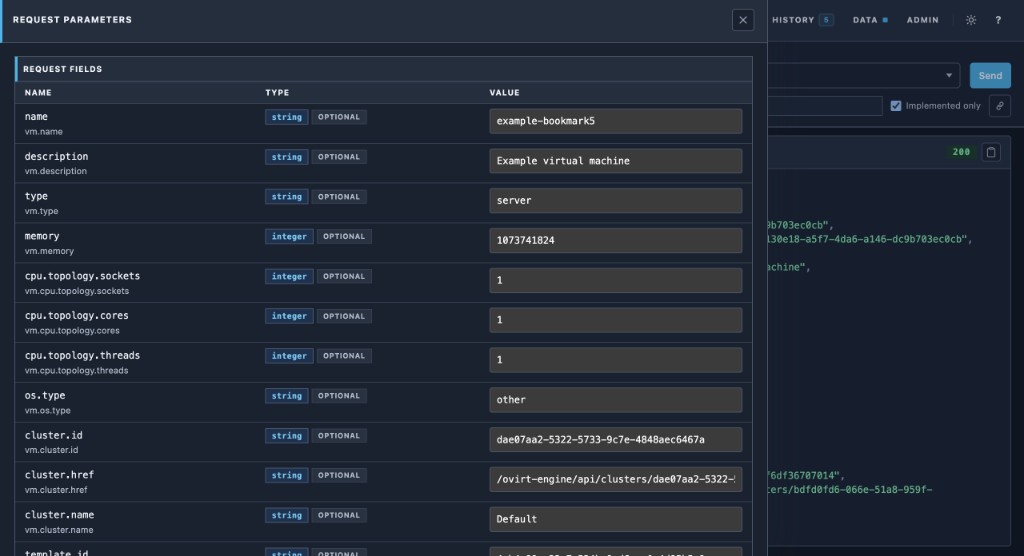

Params	Flattened path + body fields for quick edits
Response	Status + JSON tree for the last call

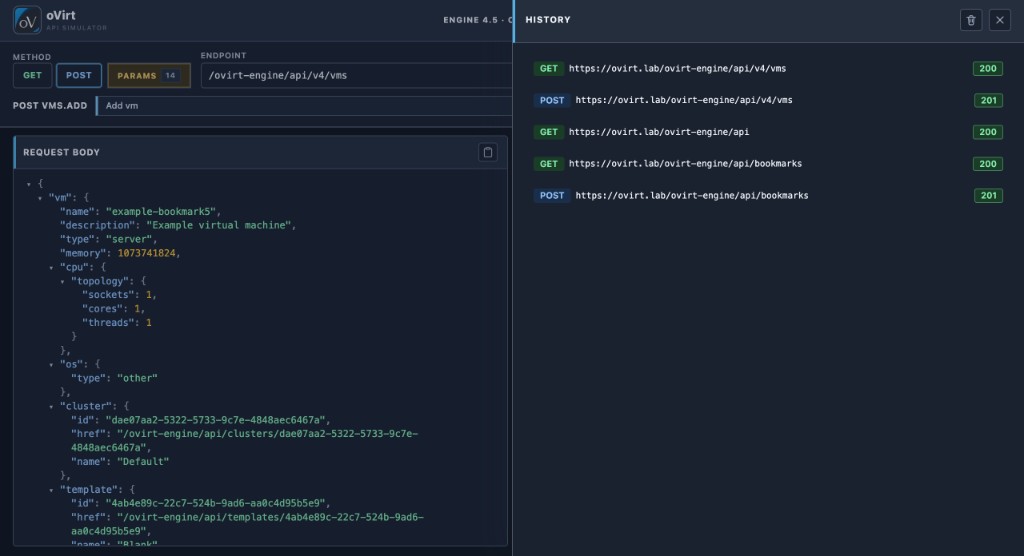

History	Recent Try-it requests (replay / restore)

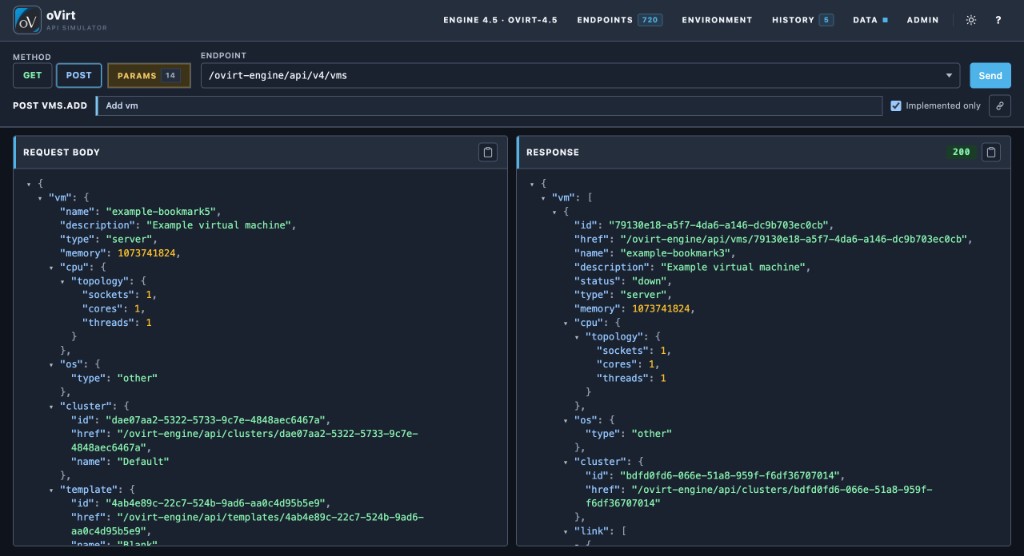

Request bodies follow the real Engine convention (root-wrapped entity or action). Samples include nested refs (cluster, template, CPU topology, storage domains) aligned with the seeded lab inventory — not a one-field stub.

Drawers

Drawer	Purpose

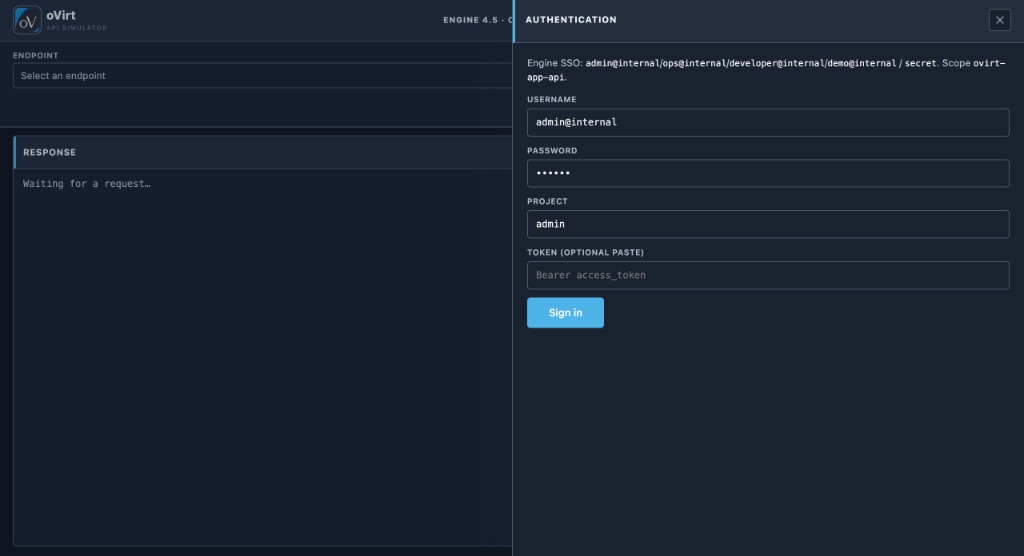

Authentication	Engine SSO password grant / paste Bearer token

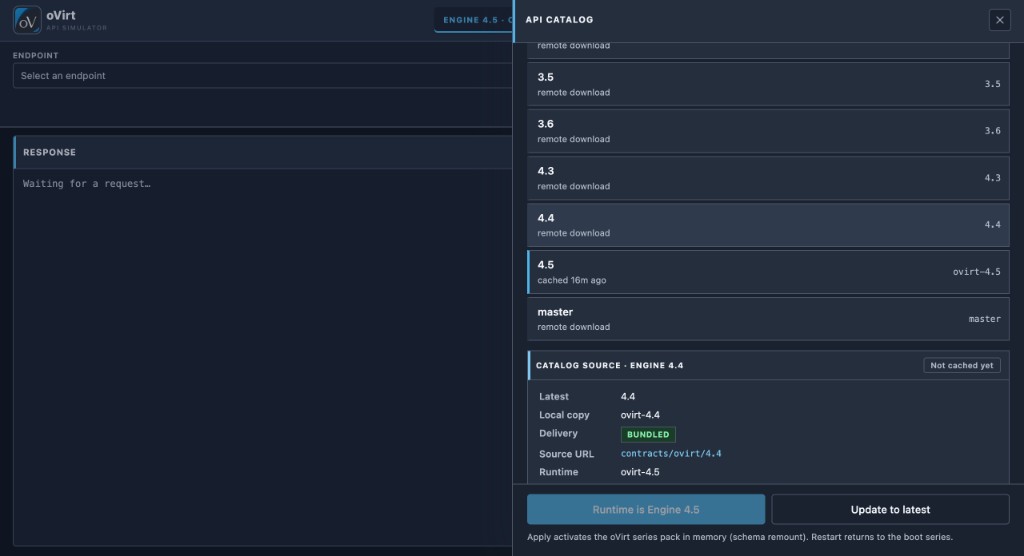

API catalog	Browse series packs; Apply as runtime hot-swap

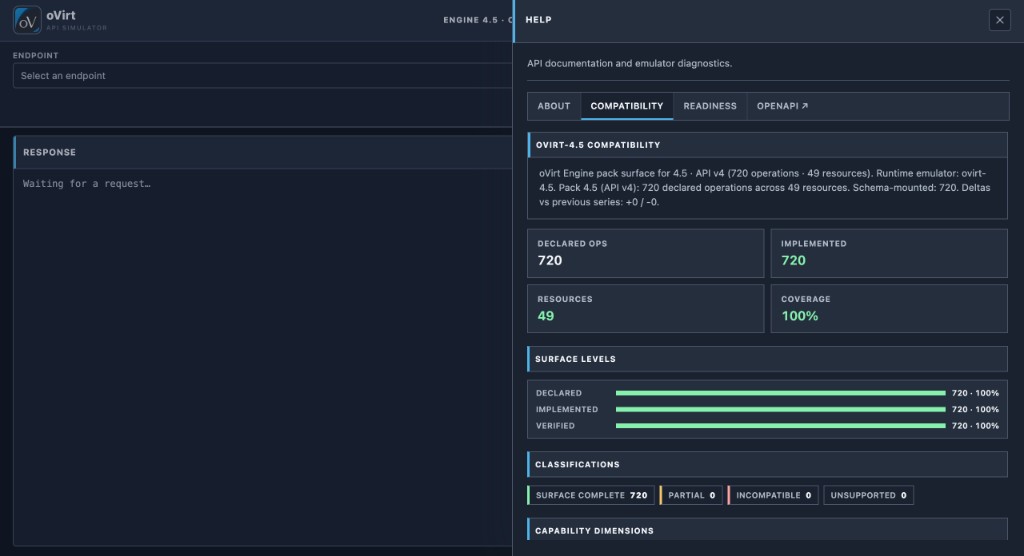

Help → Compatibility	Declared / implemented / verified surface summary

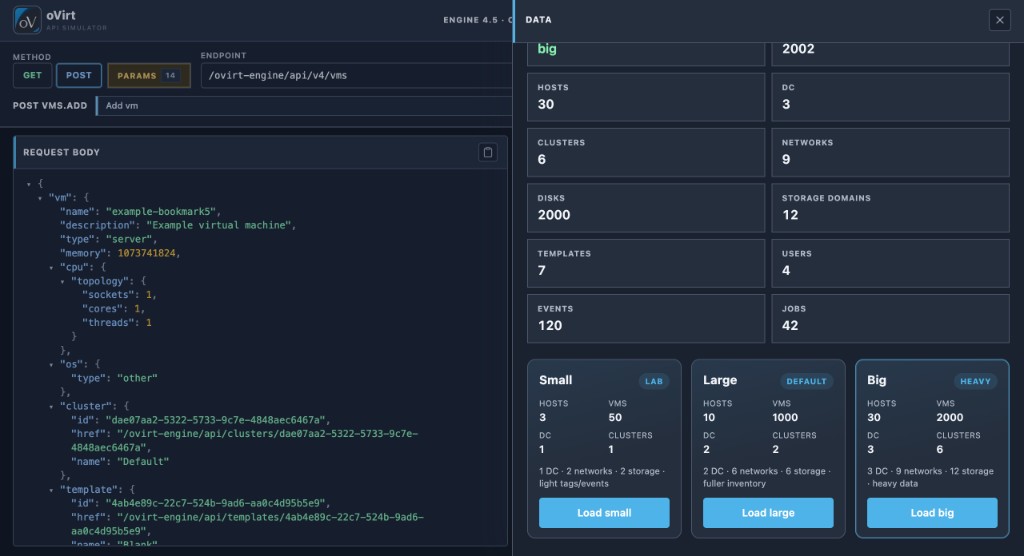

Data	Reseed minimal / small / large / big

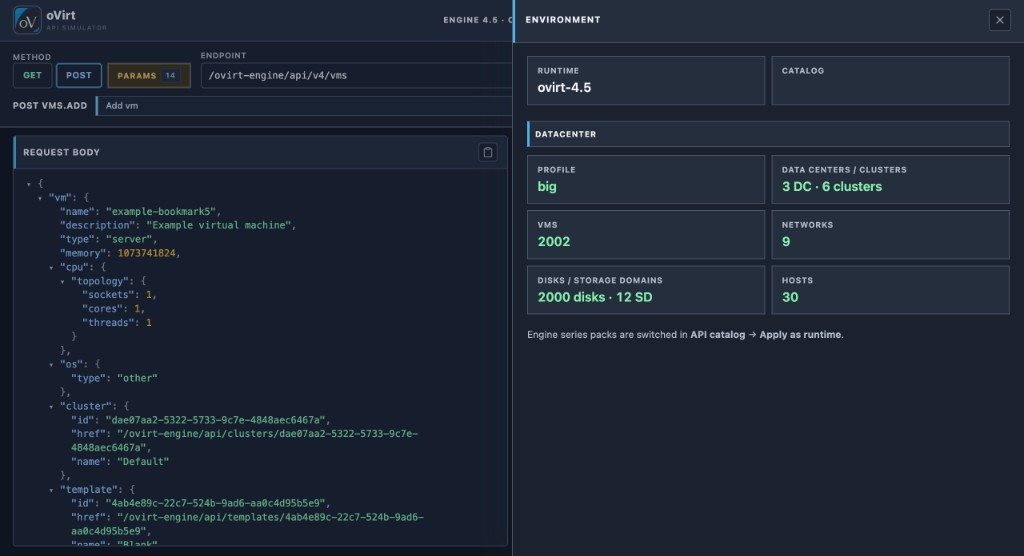

Environment	Runtime series + datacenter inventory overview

Default lab principals: admin@internal, ops@internal, developer@internal, demo@internal / secret. Scope: ovirt-app-api.

Series hot-swap

From API catalog → Apply as runtime (or UI API):

• POST /ui/api/ovirt/contracts/activate with {"series":"4.4"}
• POST /ui/api/contract/apply?major=N

This remounts the in-memory contract routes without rebuilding the image. A process restart restores the cold-start OVIRT_SERIES value. See API versions.

Notes

• Branding uses oVirt blue #0076B6 and charcoal #1D2226.
• The UI talks to the same simulator process as the Engine API; only the published listener differs (ports.md).
• OpenAPI schema: http://127.0.0.1:5000/docs (also available on the Engine HTTPS port).
