Getting started

End-to-end first lab session with Docker Compose. For Kubernetes see kubernetes.md.

Prerequisites

Docker / Docker Compose
Python 3.13+ (optional, for host-side smoke scripts)
curl or openstack CLI / openstacksdk

Choose a path

Path	When
1a. Published image	Running lab from Hub image (`docker-compose.release.yml`; needs a repo checkout for gateway/TLS mounts)
1b. Development checkout	You will change code / packs
Helm	Cluster install — kubernetes.md

1a. Published image (Docker Hub)

Requires a git checkout of this repo: Compose bind-mounts ./docker/gateway and ./docker/tls into the nginx gateway. The simulator container itself comes from Docker Hub (no local app build).

git clone https://github.com/inecs/openstack-api-simulator.git
cd openstack-api-simulator
docker compose -f docker-compose.release.yml up -d --wait
# or: make release-up

Image: inecs/openstack-api-simulator. Override tag with IMAGE_TAG=0.1.0 if needed.

1b. Development checkout

cp .env.example .env
docker compose up -d --build --wait

2. Wait until ready

curl -sf http://127.0.0.1:5000/health/ready

3. Seed a profile

Minimal seed runs on first start. Optional full synthetic cloud:

make seed-demo
# or
docker compose exec simulator python -m app.openstack.seed_cli --profile demo

Profiles: seed-profiles.md.

4. Authenticate (Keystone)

export OS_AUTH_URL=http://127.0.0.1:5000/v3
TOKEN=$(curl -si -X POST "$OS_AUTH_URL/auth/tokens" \
  -H 'Content-Type: application/json' \
  -d '{
    "auth": {
      "identity": {
        "methods": ["password"],
        "password": {
          "user": {
            "name": "admin",
            "domain": {"name": "Default"},
            "password": "secret"
          }
        }
      },
      "scope": {
        "project": {"name": "demo", "domain": {"name": "Default"}}
      }
    }
  }' | awk -F': ' 'tolower($1)=="x-subject-token"{print $2}' | tr -d '\r')
echo "token=$TOKEN"

5. Call Nova / Neutron

curl -sH "X-Auth-Token: $TOKEN" http://127.0.0.1:8774/v2.1/servers/detail | head -c 400
curl -sH "X-Auth-Token: $TOKEN" http://127.0.0.1:9696/v2.0/networks

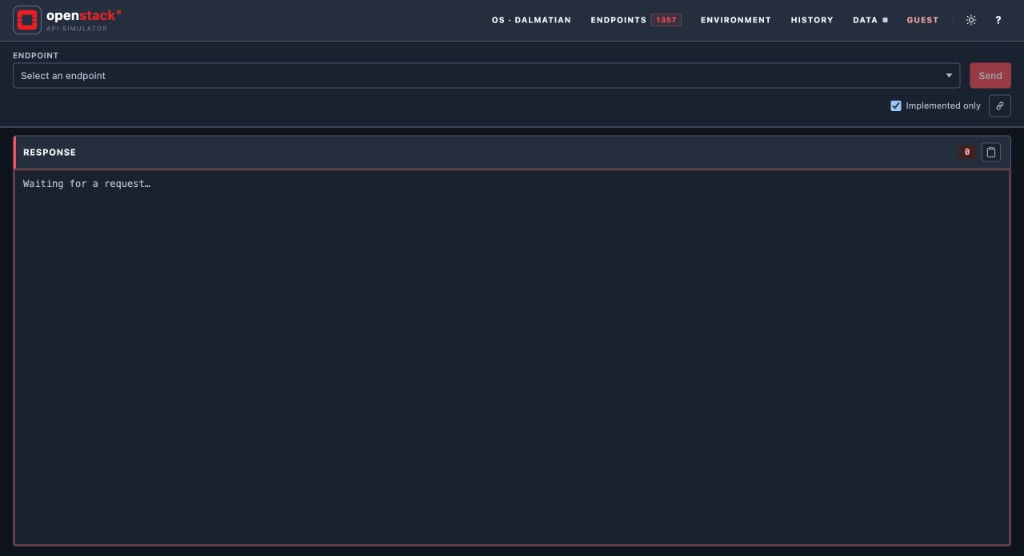

6. Open the Web UI

http://localhost:5000/ — console, API catalog (OpenStack pack series), Data drawer (load/unload demo cloud).

Walkthrough of drawers and request parameters: Web UI.

7. Smoke / conformance

make smoke
python3 examples/python/openstack_smoke.py
python3 examples/python/openstack_conformance.py

You're done when…

/health/ready returns 200
Keystone issues X-Subject-Token
Nova/Neutron lists return seeded resources
(optional) demo cloud shows ~1000 servers

Next steps

Ports — full service port matrix
API coverage — pack operations by series
Clients — openstacksdk / CLI
Kubernetes / Helm
Hypervisor-lab — Pulumi API coverage (all ops × series)
