Web UI

Console is served from the Keystone/UI port (5000 on the gateway).

URL	Purpose
`/` or `/console`	Interactive console
`/docs`	OpenAPI (simulator)
`/ui/api/…`	UI JSON APIs

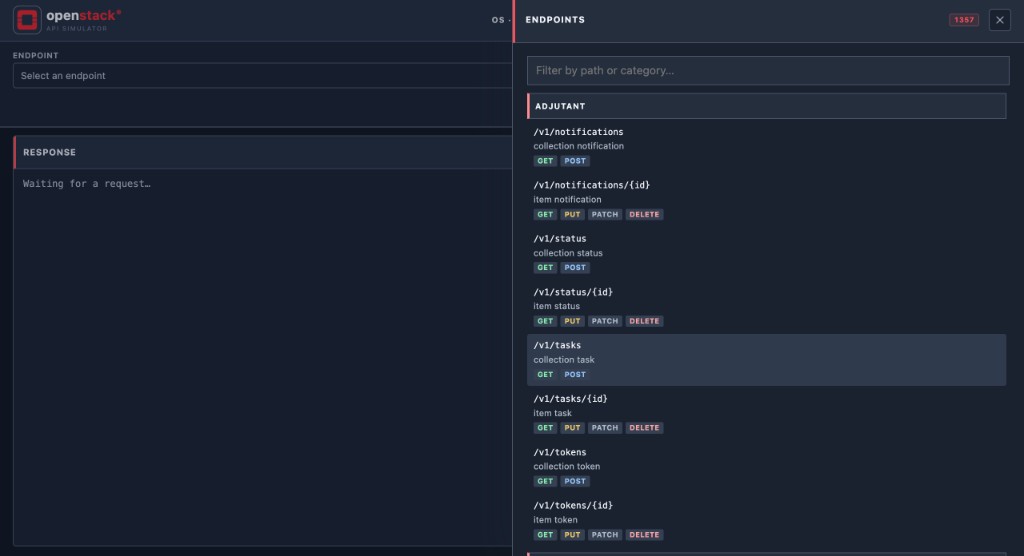

Endpoints drawer

Browse the pack surface by service (for example Adjutant). Each path shows the supported verbs.

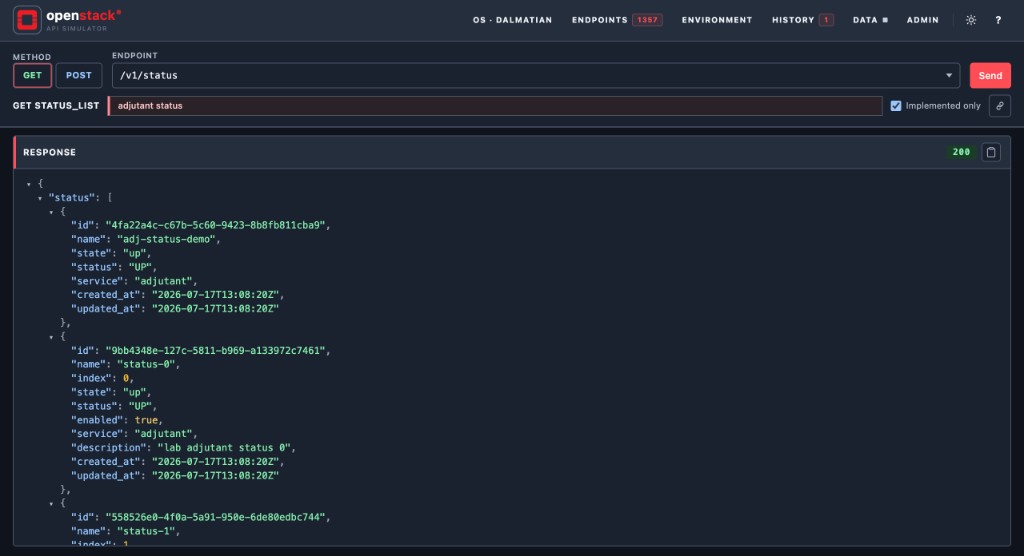

Sending requests

Pick a verb + path, then Send. Successful calls show status and JSON in RESPONSE.

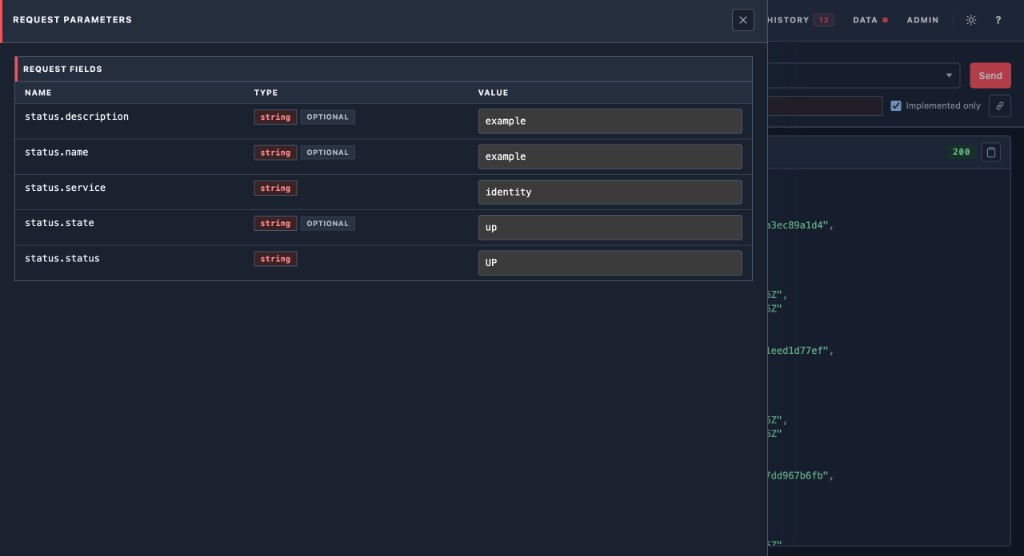

Request parameters

For POST / PUT / PATCH, Request parameters lists schema fields (dotted names for nested OpenStack envelopes) with types, optional flags, and example values. The Request body JSON is built from those fields.

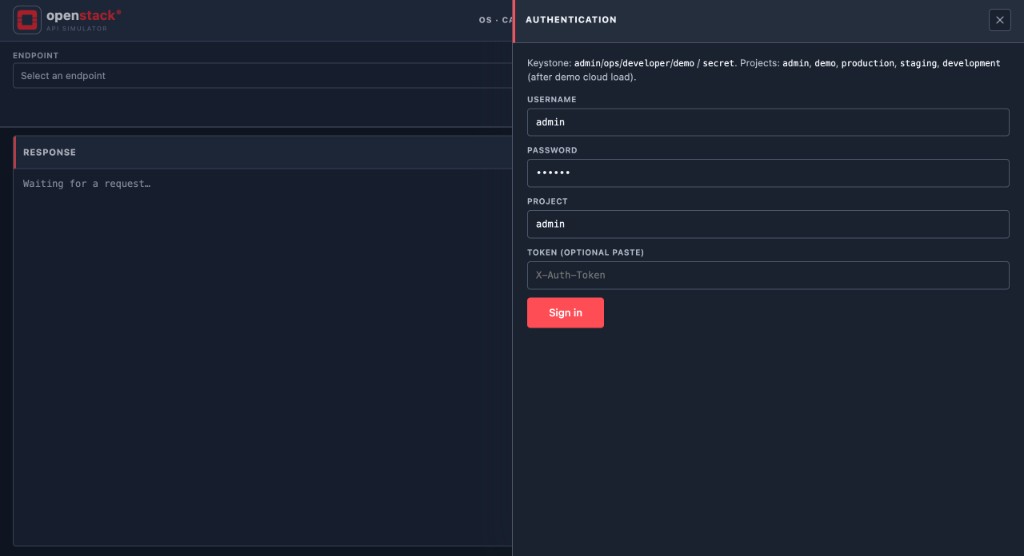

Authentication drawer

Sign in with lab Keystone users (admin / secret, projects such as admin or demo). Optional paste of an existing X-Auth-Token.

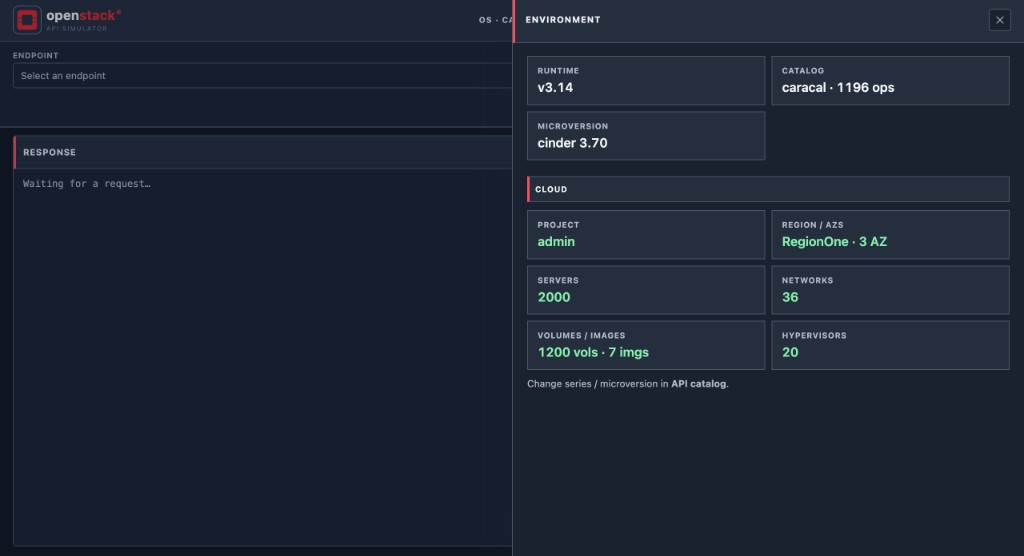

Environment drawer

Runtime / catalog / active microversion, plus live cloud inventory (servers, nets, volumes…)

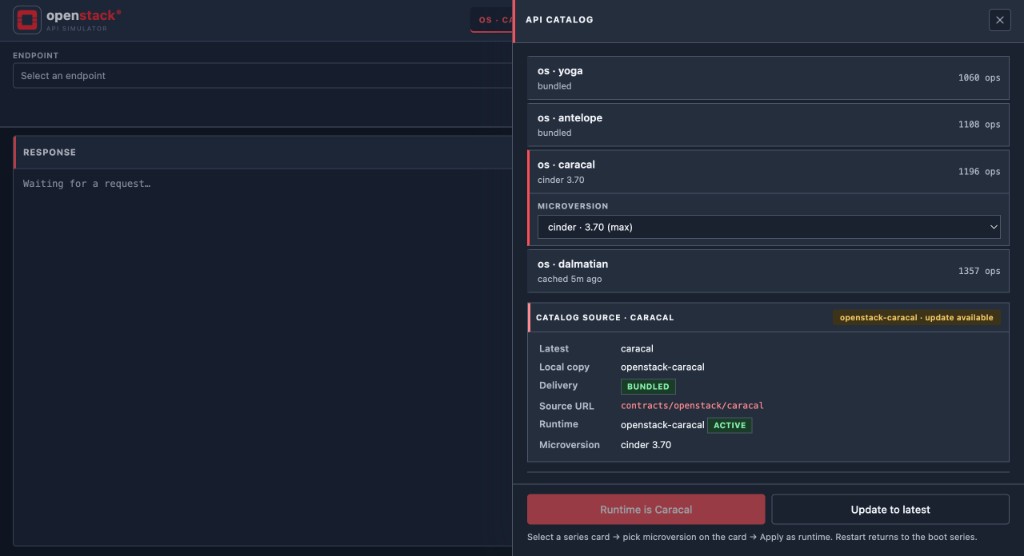

API catalog drawer

Select an OpenStack series card (os · yoga …), choose a microversion on the card, then Apply as runtime (choice is remembered across reloads)

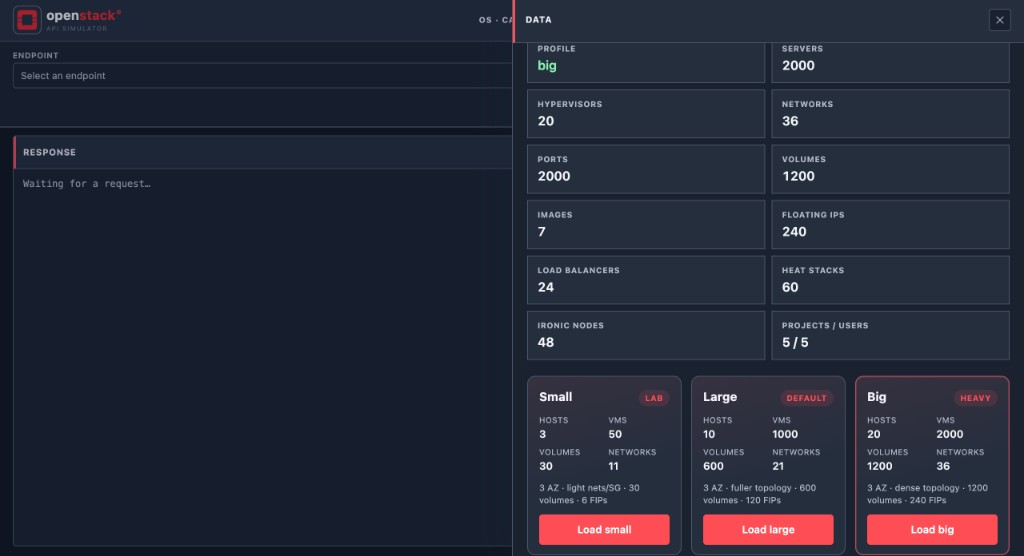

Data drawer

Load demo cloud — sized clusters (small / large / big)
Reset to minimal — minimal lab seed

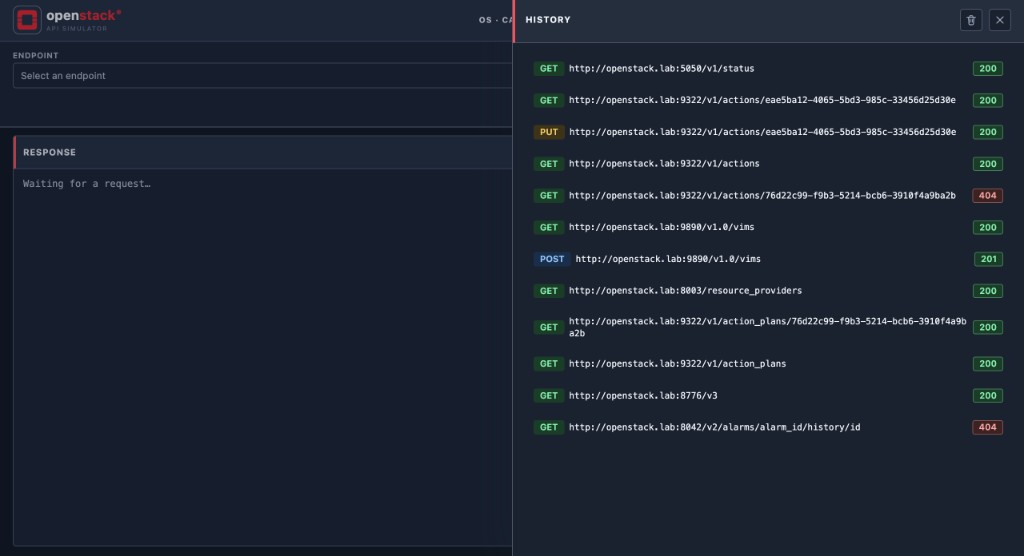

History drawer

Recent console calls with method, URL, and status.

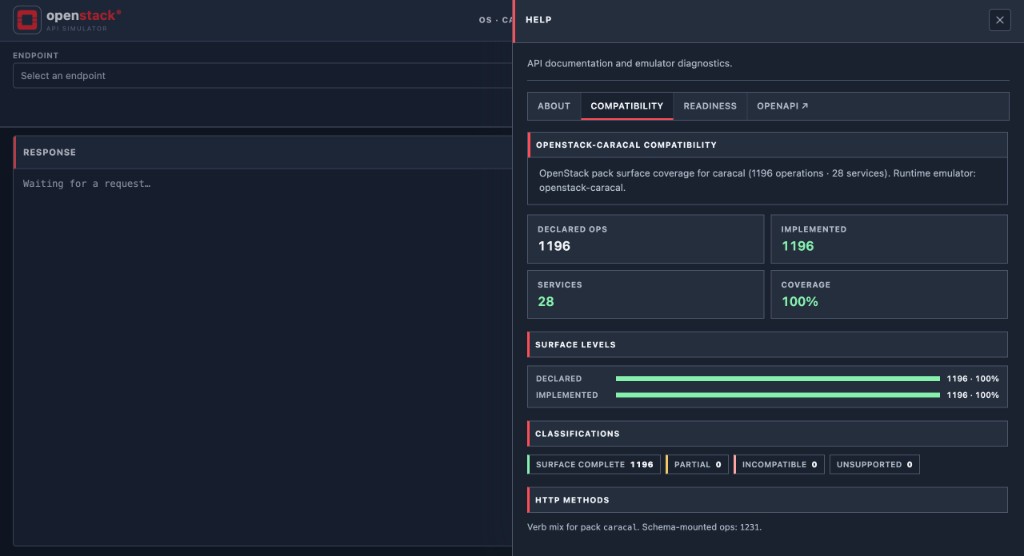

Help · Compatibility

Pack surface coverage for the active series (declared / implemented ops, services, verb mix).

Branding

OpenStack red #ED1C24, console wordmark. Themes follow the shared console chrome (light/dark).

Health

/health/live — process up
/health/ready — migrations applied + DB reachable
